High Temperature DC Axial Fans For Laptop / High Speed Micro DC Fan 18 × 18 × 4 mm

Applications:

Topfan’s fan products are utilized by all type of machines which required heat reduction systems,
such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

Description About Our Company Products:

● Brushless DC Fan, Axial DC Fan, DC Motor Fan,CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.

A: Specifications:

Model Number: MX1804ANH5

Product Name: Axial Fan

Rated Voltage (VDC): 3.3v,5.0v

Operating Voltage (VDC): 2.8 ~ 5.5

Rated Current (mA): 45 ± 10%,65 ± 10%

Rotation Speed (RPM): 8,500 ± 10%;13,000 ± 10%

Air Flow (CFM): 0.65; 0.90

Static Pressure (mmAq): 1.95;3.50

Specifications:

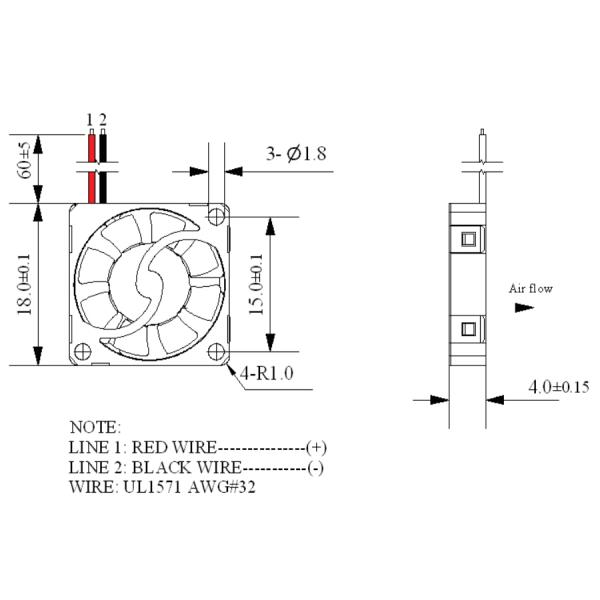

Dimensions (Unit:mm):

Company Information

Q1. Are you factory?

A1. Yes.welcome to visit our factory.

Q2. All products have a warranty?

All kinds of products at least 1 year warranty.

Q3. Can we design packaging?

A3. Yes.Default is regular packing,we can make customer's own packing.

Q4. Can we add our logo on products?

A4. Yes.

Q5. How to control the quanlity of products in your company.

A5: 100% total testing before each of fan leaves our factory.

Q6. can we customize product?

A6. Yes, OEM&ODM.

Shenzhen Topfan Technology Development Co., Ltd is a high-tech enterprise of professional manufacture and researcher on dc brushless fans and ac fans.  It is a professional cooling fan manufacturer in the field with the most professional and largest scale intergrating research and development, manufacturing and sales. The products including brushless fans, cross flow fans, blower fans, centrifugal fans, dc brushless motor,shaded pole,AC and EC fans are being widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.


Founded in 1996, owns more than 600 staffs, and with a strong power research and development team, we have ourselve's manufacturing base and industrial park.

Topfan-China core of Quality First, carry out the idea Doing Things Right Frist Time, Pursue zero defect management, holds advanced testing instruments, production equipments, excellent management experience and competitive price, which make the products more popular. Based on mutual benefit and development, we always make our biggest efforts to do everything better for our customers make us ISO9000, UL, CE and RoHS and TUV certificated and become the best sellers both at home and abroad including Europe, North America, Asia (South Korea and India) and so on.

Brave the wind and waves, setting sail. Topfan-China with a Corporate Vison of create a top cooling fans kingdom, hold a working style of serious, rigorous, fast, persistent, and team spirit of passion, independent, and high efficiency, make us become the first brand in domestic, and the most popular brand all over the world.
