3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan

    Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers

    Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers
    • Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers
    • Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers
    • Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers
    • Buy cheap 3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan from wholesalers

    3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan

    Ask Lasest Price
    Brand Name : MX /ODM/OEM
    Model Number : MX2008GYM5
    Certification : CE/ROHS/UL/SGS
    Price : us$2.0/pcs to us$3.00/pcs, and negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 600,000pcs per month
    Delivery Time : 5-12 working days after received your payment
    • Product Details
    • Company Profile

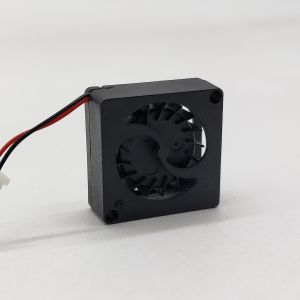

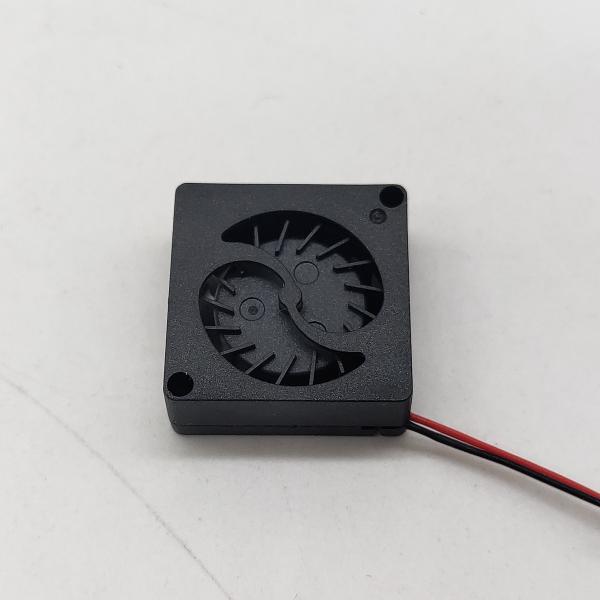

    3.3V 5V DC 20x20x8mm CPU Micro Blower Cooling Fan

    CPU Micro Blower Cooling Fan 20x20x8mm / Mini Centrifugal Motor 3.3V 5V dc ventilation fan



    DC Micro Blower Fan 20 x 20 x 8mm , low noise and long life expectancy, Topfan’s fan products are utilized by all type of machines which required heat reduction systems, such as UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

    Description About Our Company :

    Shenzhen Topfan Technology Development Co ., Ltd is a medium - sized enterprise which integrates production , research , development and sales . It has 3000 flat plant and professional design and production team . At present , the company has production development department , Q & C department ,R & D department , the domestic sales department and overseas sales department .


    1. Specification:

    2.EXPECTED LIFE SPAN (MTBF)
    At a standard operating condition of 10±5, 80±5%RH ambient

    HYDRAULIC Bearing:20000 hrs , Continuous operating under 45℃ 65%RH

    HYDRAULIC Bearing:10000 hrs , Intermittent operating under 85℃ 65%RH

    3. RELIABILITY

    ItemSpecificationTest Condition
    1Locked Rotor TestFlameproof and damage freeRotor locked for 72 hrs with Rated Voltage
    2Reverse Voltage Test ProtectionYesReverse with Rated Voltage
    3Balance TestNo protruding beyond the circle within 10 seconds

    The fan runs in a circle, scaled by
    fan radius plus 10mm

    4Drop TestAll specified characteristics remain unchangedDrop D.U.T.(The standard packing) from the test machine at 76cm below. Individual one angle,
    5Vibration TestAll specified characteristics remain unchanged

    Ambient temp.:25 ºC±5 ºC with Rated Voltage

    Amplitude:0.4-2.5 mm

    Acceleration:14.7 S/m2

    Frequency:10HZ-60HZ

    Sweeping period:1 min

    10HZ-60HZ:30 seconds

    60HZ-10HZ:30 seconds

    Total:10 cycles

    6High/Low Temperature CyclingAll specified characteristics remain unchanged

    20 minutes slew rate +85 ºC (1 hr)

    ,–10 ºC (1 hr)

    Total:36 cycles with Rated Voltage

    7Low Temp. StorageAll specified characteristics remain unchangedTested under standard condition ;after 500hrs, 20 ºC storage, without power supply.
    8High Temp. StorageAll specified characteristics remain unchangedTested under standard condition ;after 500hrs,45ºC storage, without power supply.
    9Dielectric StrengthMax 1mA of leakage Current

    Input 500V(AC) for 1 sec

    between lead (+/-) and housing



    Q1. Are you factory?

    A1. Yes.welcome to visit our factory.


    Q2. All products have a warranty?

    All kinds of products at least 1 year warranty.


    Q3. Can we design packaging?

    A3. Yes.Default is regular packing,we can make customer's own packing.


    Q4. Can we add our logo on products?

    A4. Yes.


    Q5. How to control the quanlity of products in your company.

    A5: 100% total testing before each of fan leaves our factory.


    Q6. can we customize product?

    A6. Yes, OEM&ODM.


    Any more information , please feel free to contact Helen --→
    We will reply you within 2 hours . Thanks

    Skype : helen860615
    QQ : 304994675
    Tel : 86 755 26070926
    Mobile :0086-15818540201
